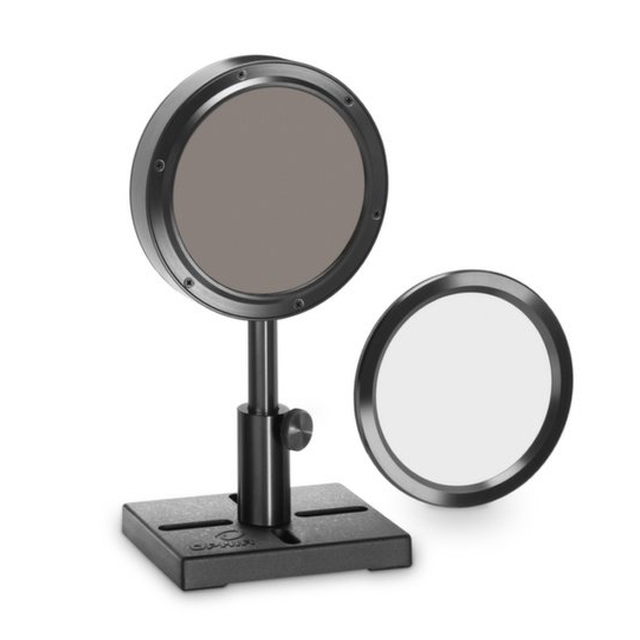

PE100BF-DIF-C 7Z02942 Large Aperture Pyroelectric Energy Meter

Updated:2025-03-13

Brand：Ophir
Model：PE100BF-DIF-C
Description: The PE100BF-DIF-C is a large aperture pyroelectric energy meter with a removable diffuser. It has a 96mm aperture with diffuser off and 85mm aperture with diffuser on. It can measure energies from 0.4
Data download

Feedback
WeChat

QQ

Online Service

Product Details

PE100BF-DIF-C 7Z02942 Large Aperture Pyroelectric Energy Meter Description：

The PE100BF-DIF-C is a large aperture pyroelectric energy meter with a removable diffuser. It has a 96mm aperture with diffuser off and 85mm aperture with diffuser on. It can measure energies from 0.4mJ up to 40J. It can operate at repetition rates up to 200Hz and is calibrated for 0.532, 1.064 and 1.55μm. The sensor comes with a standard 1.5 meter cable for connecting to a meter or PC interface.

PE100BF-DIF-C 7Z02942 Large Aperture Pyroelectric Energy Meter Drawing：

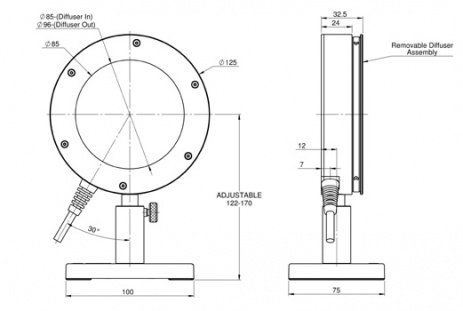

PE100BF-DIF-C Drawing

PE100BF-DIF-C 7Z02942 Large Aperture Pyroelectric Energy Meter Specifications：

Absorber Type	BF with removable diffuser
Aperture	?96mm, ?85mm with diffuser
Spectral Range	0.15-3μm, 0.4-2.5μm with diffuser
Energy Range	400μJ – 40J
Maximum Frequency	200Hz
Dimensions	?125 W x 33 D (mm)
Max Pulse Energy	40J
Max Average Power Density	20W/cm2
Max Pulse Width	20 ms
Damage Threshold(for <100ns)	0.8J/cm2
Damage Threshold(for 2ms)	10J/cm2
Max Average Power	25W
